bitbucketRestApi结合python和RPA获取报表

Bitbucket 是 Atlassian 提供的代码托管平台，支持 Git 和 Mercurial 仓库，提供团队协作、Pull Request、分支权限管理等功能，并与 Jira、Confluence 等工具深度集成，适合团队进行版本控制、代码审查和 CI/CD 流水线管理。

Bitbucket REST API 是 Bitbucket 提供的 HTTP 接口，允许通过程序化方式访问和操作仓库，例如获取仓库信息、提交记录、分支、Pull Request 等。它常用于自动化管理项目，如创建分支、触发构建或获取报表，可以配合 Python、RPA 等工具实现自动化任务。

bitbucketRestApi使用方法

​ 官方文档REST Resources Provided By: Bitbucket Server - REST

​ 官方文档非常详细，各类功能均有案例说明。

包括但不限于：

1. 将 Bitbucket 与其他应用程序集成;
2. 创建与 Bitbucket 交互的脚本;或
3. 开发增强 Bitbucket UI 的插件，使用 REST 与后端交互。
4. 获取各类信息

​ 这里基于案例：

1. 获取所有项目

2. 以及每个项目下的仓库

3. 每个仓库下近一年、二年、三年的提交人数

   进行介绍使用方法，难度由简单到复杂。

   最终结果如下h

1. 案例操作步骤

1.1 获取所有项目信息

​ 可以通过curl或者python等等方式获取api信息。

curl -u username:password http://IP:port/rest/api/1.0/projects?limit=1000

​ 通过观察可以发现每个项目有唯一的key。之后可以通过key查询项目下的仓库。

1.2 获取单个项目下的信息

1.2.1 获取单个项目下的管理员信息

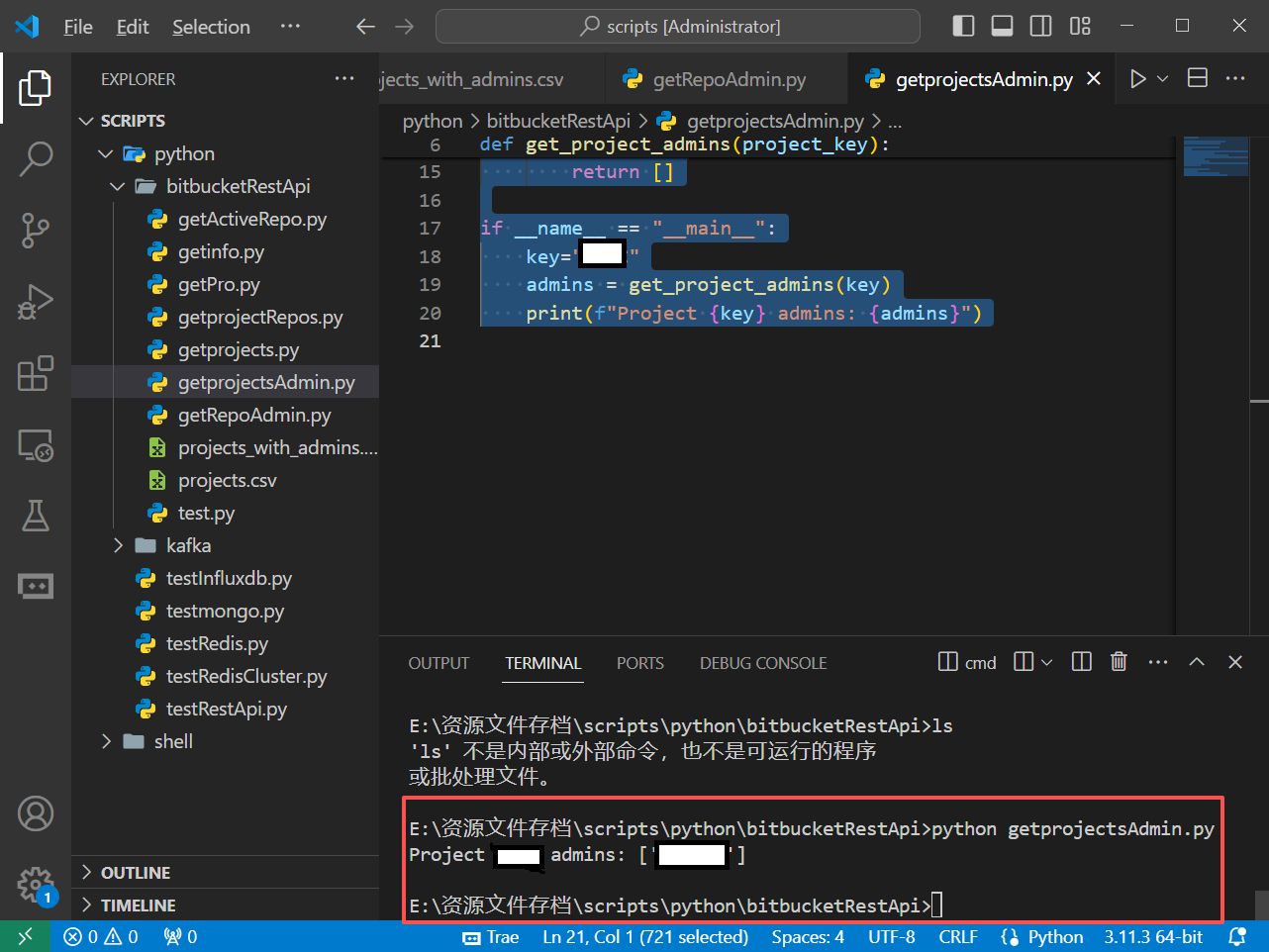

通过刚刚的方法获取到了key之后就可以通过key查询项目信息。运行python文件getSingleProjectAdmin.py即可

import requests

BASE_URL = "http://IP:port"
AUTH = ("username", "password")

def get_project_admins(project_key):
    try:
        resp = requests.get(f"{BASE_URL}/rest/api/1.0/projects/{project_key}/permissions/users?limit=1000", auth=AUTH)# 重点
        resp.raise_for_status()
        users = resp.json().get('values', [])
        admins = [u['user']['displayName'] for u in users if u['permission'] == 'PROJECT_ADMIN']
        return admins
    except Exception as e:
        print(f"Error getting admins for project {project_key}: {e}")
        return []

if __name__ == "__main__":
    key="project key"
    admins = get_project_admins(key)
    print(f"Project {key} admins: {admins}")

1.2.2 获取单个项目下的代码仓库信息

以类似的方法获取。运行python文件 getSingleProjectRepos.py即可获取。

import requests

BASE_URL = "http://IP:port"
AUTH = ("username", "password")

def get_project_repos(project_key):
    try:
        resp = requests.get(f"{BASE_URL}/rest/api/1.0/projects/{project_key}/repos?limit=1000", auth=AUTH)# 重点
        resp.raise_for_status()
        repos = resp.json().get('values', [])
        result = []
        for r in repos:
            result.append({
                "name": r.get('name', 'N/A'),
                "slug": r.get('slug', 'N/A'),
                "description": r.get('description', '')
            })
        return result
    except Exception as e:
        print(f"Error getting repos for project {project_key}: {e}")
        return []

if __name__ == "__main__":
    key = "project key"

    repos = get_project_repos(key)
    print(f"Project {key} repos: {repos}")

1.3 获取单个仓库的提交信息

可以通过项目key和repo的slug查询到仓库提交信息，进而判断每一个仓库的活跃度。并且支持细粒度的时间范围查询。运行python文件 getSingleProjectRepos.py即可实现。

import requests
import base64
from datetime import datetime
from collections import defaultdict

BASE_URL = "http://IP:port"
USERNAME = "username"
PASSWORD = "password"

def get_auth_header(user, pwd):
    auth_str = f"{user}:{pwd}"
    auth_bytes = auth_str.encode("utf-8")
    base64_bytes = base64.b64encode(auth_bytes)
    base64_str = base64_bytes.decode("ascii")
    return {"Authorization": f"Basic {base64_str}"}

HEADERS = get_auth_header(USERNAME, PASSWORD)

# 获取项目下的所有仓库
def get_project_repos(project_key):
    url = f"{BASE_URL}/rest/api/1.0/projects/{project_key}/repos?limit=1000"
    resp = requests.get(url, headers=HEADERS)
    resp.raise_for_status()
    return resp.json().get("values", [])

# 获取指定仓库指定时间段内的提交记录（支持分页）
def get_commits_in_range(project_key, repo_slug, start_date, end_date):
    commits = []
    start = 0
    is_last_page = False
    while not is_last_page:
        url = f"{BASE_URL}/rest/api/1.0/projects/{project_key}/repos/{repo_slug}/commits?limit=1000&start={start}"
        resp = requests.get(url, headers=HEADERS)
        resp.raise_for_status()
        data = resp.json()
        for c in data.get("values", []):
            author = c.get("author", {}).get("name", "unknown")
            date_ts = c.get("authorTimestamp")  # 毫秒时间戳
            commit_date = datetime.utcfromtimestamp(date_ts / 1000)
            if start_date <= commit_date <= end_date:
                commits.append({"author": author, "date": commit_date})
        is_last_page = data.get("isLastPage", True)
        start = data.get("nextPageStart", 0)
    return commits

# 统计开发者活跃度
def get_dev_activity(commits):
    activity = defaultdict(int)
    for c in commits:
        activity[c["author"]] += 1
    return dict(activity)

def get_project_activity_fixed(project_key):
    """
    查询指定项目在固定时间段内的所有仓库提交信息和开发者活跃度。

    参数：
        project_key (str): 项目 key

    返回：
        List[Dict]: 每个仓库的提交情况
    """
    # 固定时间段（内部设置）
    start_date = datetime(2020, 1, 1)
    end_date = datetime(2025, 8, 28)

    repos = get_project_repos(project_key)
    results = []

    for r in repos:
        commits = get_commits_in_range(project_key, r["slug"], start_date, end_date)
        activity = get_dev_activity(commits)
        results.append({
            "repo_name": r["name"],
            "repo_slug": r["slug"],
            "start_date": start_date.date(),
            "end_date": end_date.date(),
            "activity": activity
        })

    return results


if __name__ == "__main__":
    project_key = "project key"
    activity_data = get_project_activity_fixed(project_key)
    print(activity_data)

2. 最终结果

整合以上所有代码即可获取最终结果。

2.1 获取所有项目下的基本信息

包括：ID Project Key Project Name Repo Name Repo Slug Description Admins。运行python文件getAllProjectsAndRepos.py即可。

import os
import csv
import requests

# -----------------------------
# 环境变量读取用户名密码
# -----------------------------
USERNAME = "username"
PASSWORD = "password"
AUTH = (USERNAME, PASSWORD)
BASE_URL = "http://IP:port"

# -----------------------------
# 获取项目管理员
# -----------------------------
def get_all_projects():
    try:
        resp = requests.get(f"{BASE_URL}/rest/api/1.0/projects?limit=1000", auth=AUTH)
        resp.raise_for_status()
        projects = resp.json().get('values', [])
        return projects
    except Exception as e:
        print(f"Error getting projects: {e}")
        return []

# -----------------------------
# 获取项目管理员
# -----------------------------
def get_project_admins(project_key):
    try:
        resp = requests.get(
            f"{BASE_URL}/rest/api/1.0/projects/{project_key}/permissions/users?limit=1000",
            auth=AUTH
        )
        resp.raise_for_status()
        users = resp.json().get('values', [])
        admins = [u['user']['displayName'] for u in users if u['permission'] == 'PROJECT_ADMIN']
        return admins
    except Exception as e:
        print(f"Error getting admins for project {project_key}: {e}")
        return []

# -----------------------------
# 获取项目仓库信息
# -----------------------------
def get_project_repos(project_key):
    try:
        resp = requests.get(
            f"{BASE_URL}/rest/api/1.0/projects/{project_key}/repos?limit=1000",
            auth=AUTH
        )
        resp.raise_for_status()
        repos = resp.json().get('values', [])
        result = []
        for r in repos:
            result.append({
                "name": r.get('name', 'N/A'),
                "slug": r.get('slug', 'N/A'),
                "description": r.get('description', ''),
            })
        return result
    except Exception as e:
        print(f"Error getting repos for project {project_key}: {e}")
        return []

# -----------------------------
# 主程序，生成 CSV
# -----------------------------
if __name__ == "__main__":
    all_projects = get_all_projects()
    csv_file = "all_projects_repos.csv"
    with open(csv_file, mode="w", newline="", encoding="utf-8") as f:
        writer = csv.writer(f)
        writer.writerow(["ID", "Project Key", "Project Name", "Repo Name", "Repo Slug", "Description", "Admins"])

        idx = 1
        for p in all_projects:
            project_key = p.get("key")
            project_name = p.get("name")
            admins = get_project_admins(project_key)
            repos = get_project_repos(project_key)
            if not repos:
                # 如果没有仓库，也写一行
                writer.writerow([idx, project_key, project_name, "", "", "", ";".join(admins)])
                idx += 1
            else:
                for r in repos:
                    writer.writerow([idx, project_key, project_name, r["name"], r["slug"], r["description"], ";".join(admins)])
                    idx += 1

    print(f"CSV file generated: {csv_file}")

2.2 获取所有项目所有仓库多年的提交信息

​ 利用上一步获取到的excel文件结合RPA技术即可实现最终效果。也可以使用pytohn的excel模块，但是出问题概率高。

首先复制上一步所有的csv内容到excel表格。得到以下表格的A到G列。

2.2.1 获取基本信息

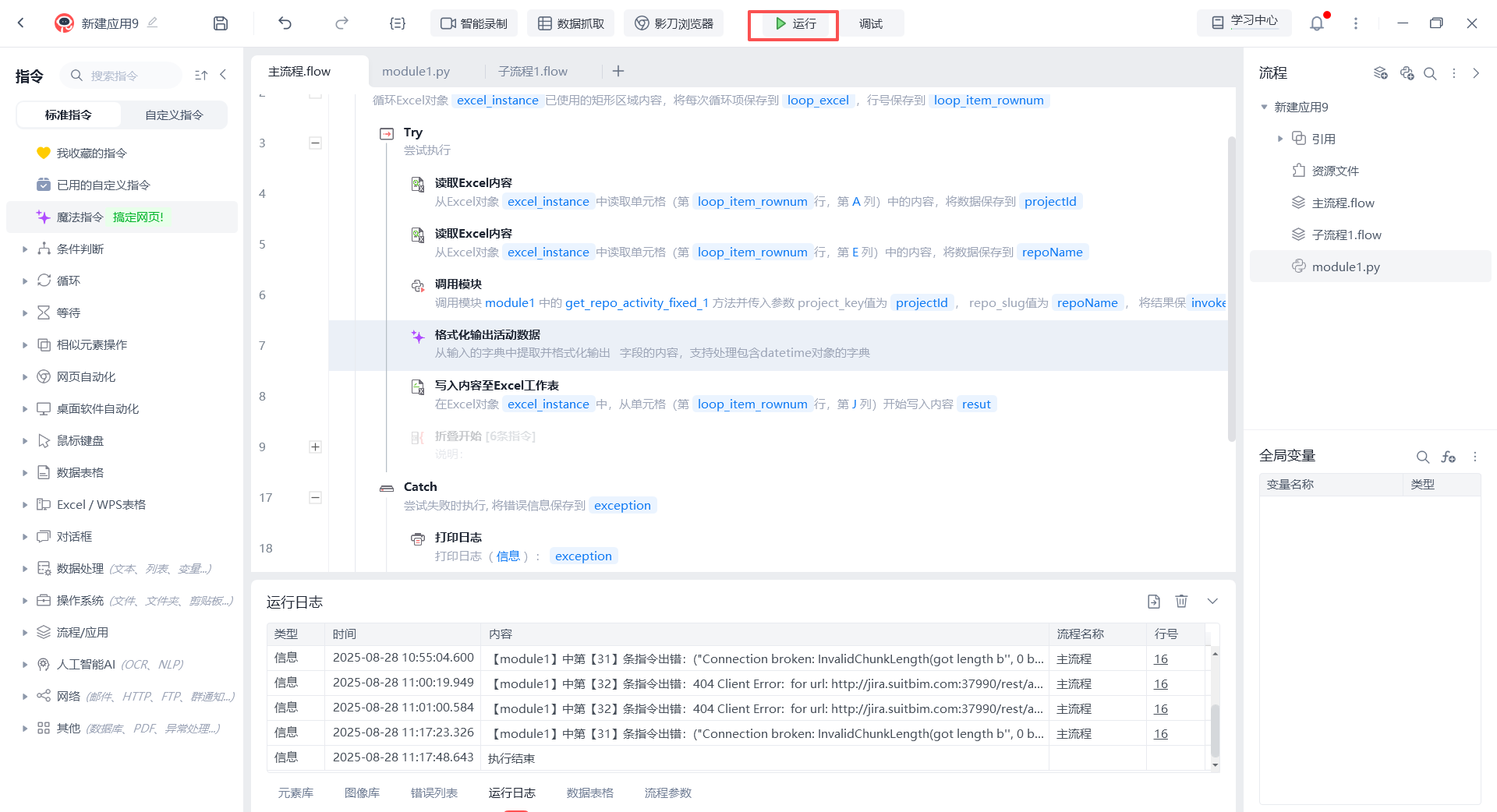

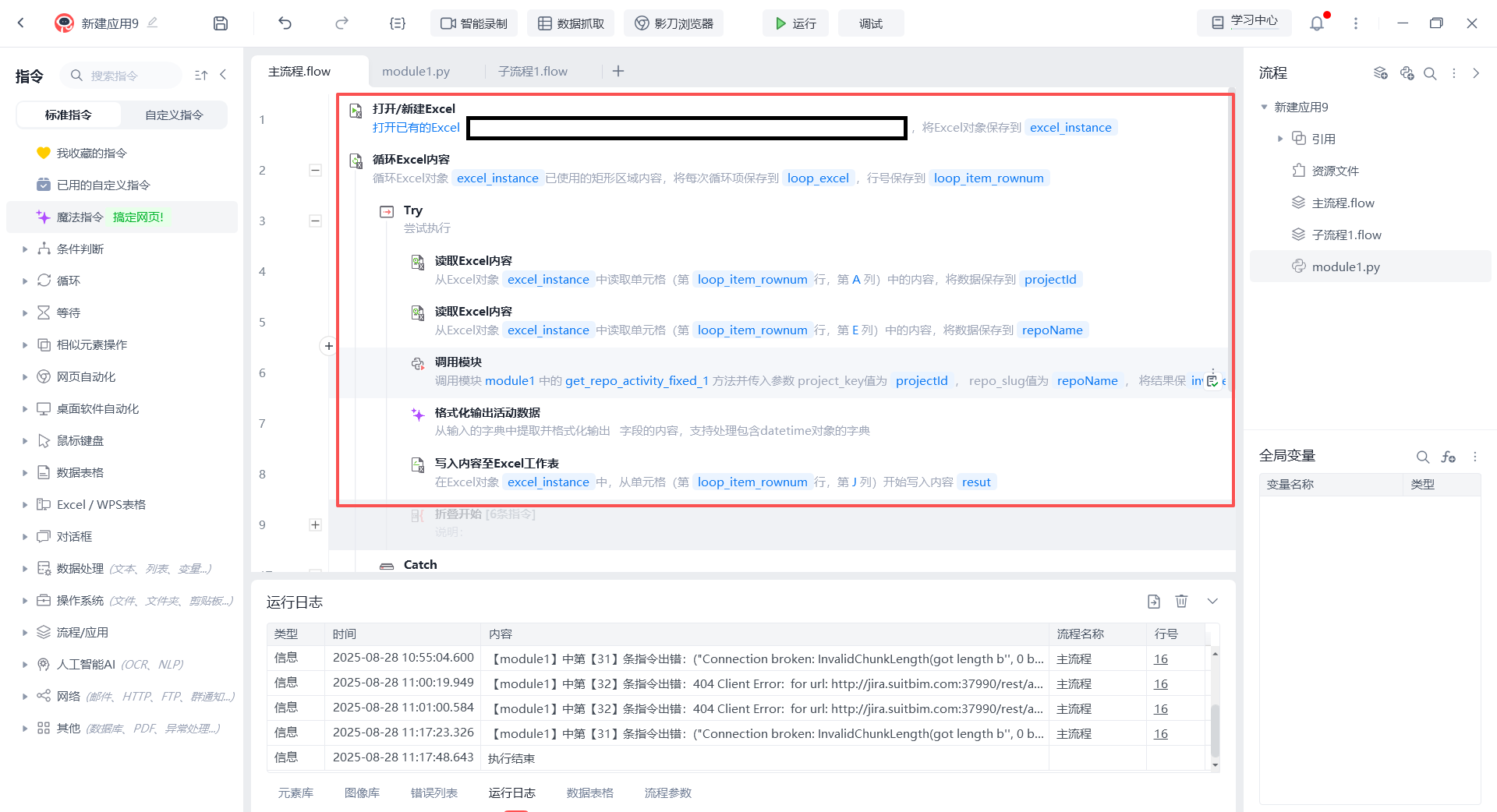

2.2.2 RPA操作

2.2.2.1准备影刀RPA

​ 下载影刀RPA下载影刀客户端-影刀RPA - 影刀官网

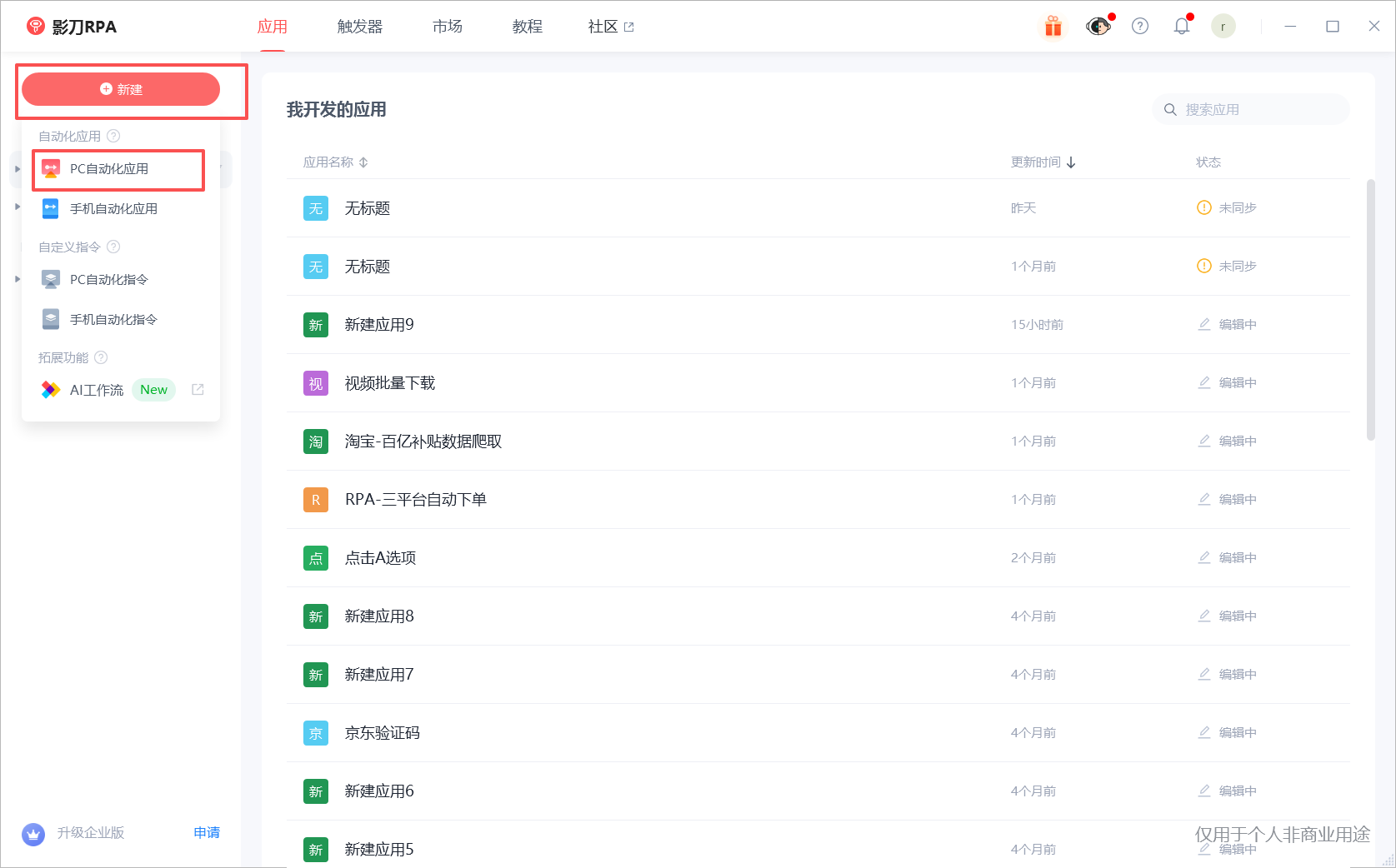

2.2.2.2 创建RPA项目

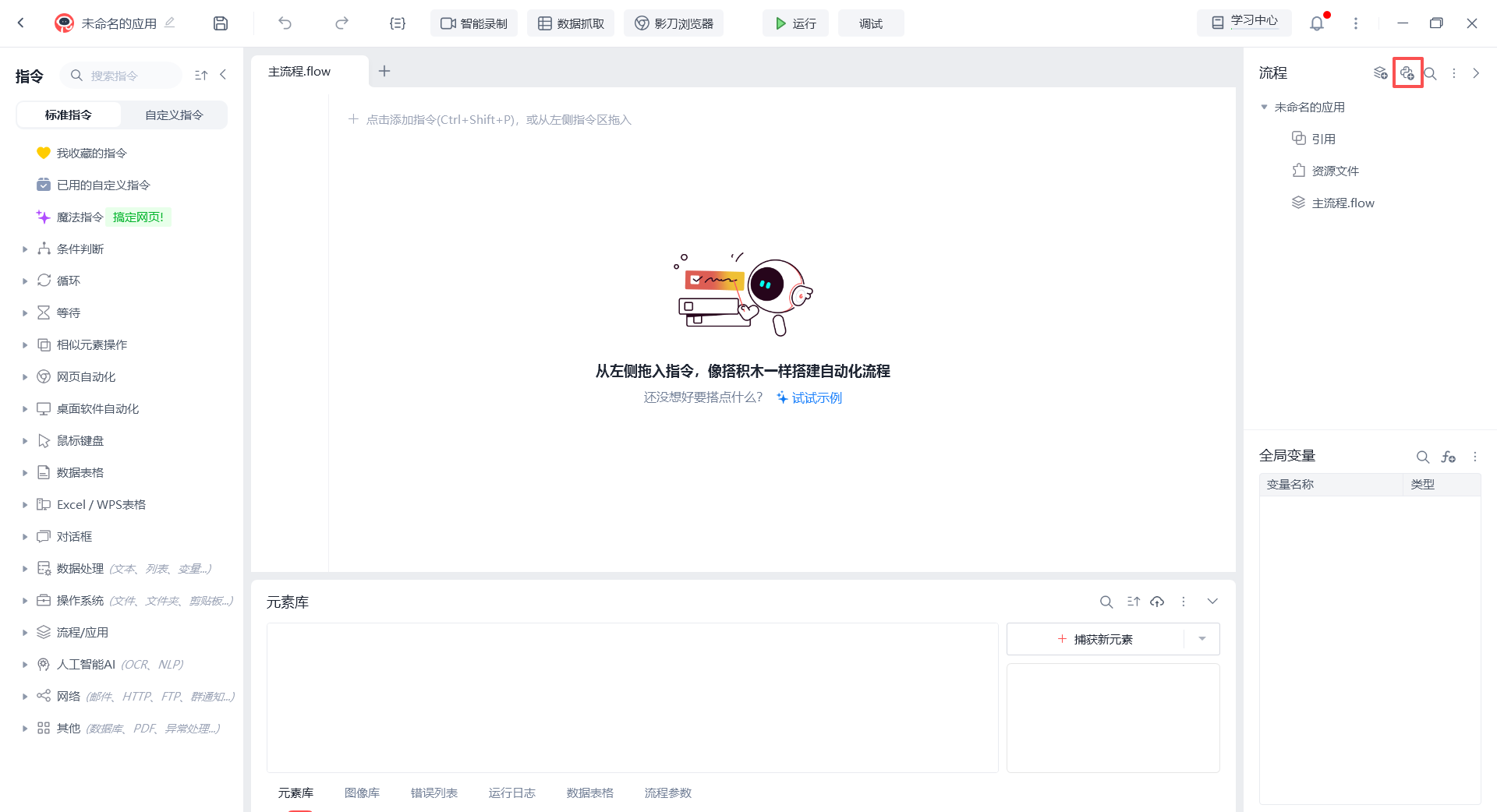

2.2.2.1 编写RPA模块

接下来使用RPA。编写获取提交信息的模块，也是基于python。

模块源代码：

from datetime import datetime
from collections import defaultdict
import requests
import base64

BASE_URL = "http://IP:port"
USERNAME = "username"
PASSWORD = "password"

def get_auth_header(user, pwd):
    auth_str = f"{user}:{pwd}"
    auth_bytes = auth_str.encode("utf-8")
    base64_bytes = base64.b64encode(auth_bytes)
    base64_str = base64_bytes.decode("ascii")
    return {"Authorization": f"Basic {base64_str}"}

HEADERS = get_auth_header(USERNAME, PASSWORD)

def get_project_repos(project_key):
    url = f"{BASE_URL}/rest/api/1.0/projects/{project_key}/repos?limit=1000"
    resp = requests.get(url, headers=HEADERS)
    resp.raise_for_status()
    return resp.json().get("values", [])

def get_commits_in_range(project_key, repo_slug, start_date, end_date):
    commits = []
    start = 0
    is_last_page = False
    while not is_last_page:
        url = f"{BASE_URL}/rest/api/1.0/projects/{project_key}/repos/{repo_slug}/commits?limit=1000&start={start}"
        resp = requests.get(url, headers=HEADERS)
        resp.raise_for_status()
        data = resp.json()
        for c in data.get("values", []):
            author = c.get("author", {}).get("name", "unknown")
            date_ts = c.get("authorTimestamp")  # 毫秒时间戳
            commit_date = datetime.utcfromtimestamp(date_ts / 1000)
            if start_date <= commit_date <= end_date:
                commits.append({"author": author, "date": commit_date})
        is_last_page = data.get("isLastPage", True)
        start = data.get("nextPageStart", 0)
    return commits

def get_dev_activity(commits):
    activity = defaultdict(int)
    for c in commits:
        activity[c["author"]] += 1
    return dict(activity)

def get_repo_activity(project_key, repo_slug, start_date, end_date):
    """
    返回指定项目仓库在指定时间段内的开发者活跃度信息

    参数：
        project_key (str): 项目 key
        repo_slug (str): 仓库 slug
        start_date (datetime): 查询开始日期
        end_date (datetime): 查询结束日期

    返回：
        Dict: {
            "repo_name": 仓库名,
            "repo_slug": 仓库 slug,
            "start_date": 日期,
            "end_date": 日期,
            "activity": {开发者: 提交次数}
        }
    """
    repos = get_project_repos(project_key)
    repo_info = next((r for r in repos if r['slug'] == repo_slug), None)
    if not repo_info:
        raise ValueError(f"仓库 {repo_slug} 不存在于项目 {project_key}")

    commits = get_commits_in_range(project_key, repo_slug, start_date, end_date)
    activity = get_dev_activity(commits)

    return {
        "repo_name": repo_info['name'],
        "repo_slug": repo_info['slug'],
        "start_date": start_date.date(),
        "end_date": end_date.date(),
        "activity": activity
    }

def get_repo_activity_fixed_1(project_key, repo_slug):
    """
    查询指定项目仓库在固定时间段内的开发者活跃度。

    参数：
        project_key (str): 项目 key
        repo_slug (str): 仓库 slug

    返回：
        Dict: 包含仓库 slug、时间段、开发者提交次数
    """
    # 固定时间段
    start_date = datetime(2023, 1, 1)
    end_date = datetime(2024, 1, 1)

    commits = get_commits_in_range(project_key, repo_slug, start_date, end_date)
    activity = get_dev_activity(commits)

    return {
        "repo_slug": repo_slug,
        "start_date": start_date.date(),
        "end_date": end_date.date(),
        "activity": activity
    }

def get_repo_activity_fixed_2(project_key, repo_slug):
    """
    查询指定项目仓库在固定时间段内的开发者活跃度。

    参数：
        project_key (str): 项目 key
        repo_slug (str): 仓库 slug

    返回：
        Dict: 包含仓库名、仓库 slug、时间段、开发者提交次数
    """
    # 固定时间段
    start_date = datetime(2024, 1, 1)
    end_date = datetime(2025, 1, 1)

    repos = get_project_repos(project_key)
    repo_info = next((r for r in repos if r['slug'] == repo_slug), None)
    if not repo_info:
        raise ValueError(f"仓库 {repo_slug} 不存在于项目 {project_key}")

    commits = get_commits_in_range(project_key, repo_slug, start_date, end_date)
    activity = get_dev_activity(commits)

    return {
        "repo_name": repo_info['name'],
        "repo_slug": repo_info['slug'],
        "start_date": start_date.date(),
        "end_date": end_date.date(),
        "activity": activity
    }
def get_repo_activity_fixed_3(project_key, repo_slug):
    """
    查询指定项目仓库在固定时间段内的开发者活跃度。

    参数：
        project_key (str): 项目 key
        repo_slug (str): 仓库 slug

    返回：
        Dict: 包含仓库名、仓库 slug、时间段、开发者提交次数
    """
    # 固定时间段
    start_date = datetime(2023, 1, 1)
    end_date = datetime(2024, 1, 1)

    repos = get_project_repos(project_key)
    repo_info = next((r for r in repos if r['slug'] == repo_slug), None)
    if not repo_info:
        raise ValueError(f"仓库 {repo_slug} 不存在于项目 {project_key}")

    commits = get_commits_in_range(project_key, repo_slug, start_date, end_date)
    activity = get_dev_activity(commits)

    return {
        "repo_name": repo_info['name'],
        "repo_slug": repo_info['slug'],
        "start_date": start_date.date(),
        "end_date": end_date.date(),
        "activity": activity
    }
# 调用示例
if __name__ == "__main__":
    project_key = "project key"
    repo_slug = "stec-project key-app"
    start_date = datetime(2020, 1, 1)
    end_date = datetime(2025, 8, 26)

    repo_activity = get_repo_activity(project_key, repo_slug, start_date, end_date)
    print(f"仓库: {repo_activity['repo_name']} ({repo_activity['repo_slug']})")
    print(f"时间段: {repo_activity['start_date']} 到 {repo_activity['end_date']}")
    for dev, count in repo_activity['activity'].items():
        print(f"  {dev}: {count}次")

2.2.2.2 编写RPA

RPA流程主要操作：

其中：魔法指令的源代码：

from datetime import date

from typing import *
try:
    from xbot.app.logging import trace as print
except:
    from xbot import print


def format_activity_output(input_data):
    """
    title: 格式化输出活动数据
    description: 从输入的字典中提取并格式化输出 % activity % 字段的内容，支持处理包含datetime对象的字典。
    inputs:
        - input_data (dict): 包含activity字段的字典数据，eg: "{'repo_name': 'stec-project key-app', 'start_date': datetime.date(2020, 1, 1), 'activity': {'zhangjian': 11, 'Jingyue Lou': 1}}"
    outputs:
        - formatted_activity (str): 格式化后的活动数据，eg: "zhangjian: 11\nJingyue Lou: 1"
    """

    # 检查输入是否为字典
    if not isinstance(input_data, dict):
        raise ValueError("输入数据必须是字典格式")

    # 检查是否包含activity字段
    if 'activity' not in input_data:
        raise ValueError("输入数据中不包含'activity'字段")

    # 获取activity数据
    activity_data = input_data['activity']

    # 检查activity是否为字典
    if not isinstance(activity_data, dict):
        raise ValueError("activity字段必须是字典格式")

    # 格式化输出
    formatted_result = ""
    for name, count in activity_data.items():
        formatted_result += f"{name}: {count}\n"

    # 去除最后一个换行符
    if formatted_result:
        formatted_result = formatted_result.rstrip()

    return formatted_result

2.2.3 运行RPA

2.2.4 结束
