jira、confluence、bitbucket、crowd部署

版本信息

  • jira:7.13
  • confluence:6.10.0
  • bitbucket:7.0.0
  • crowd:3.4.4
  • mysql:5.7

1. 准备工作

  • 准备安装包
    • atlassian-jira-software-7.13.0-x64.bin
    • atlassian-confluence-6.10.0-x64.bin
    • atlassian-bitbucket-7.0.0-x64.bin
    • atlassian-crowd-3.4.4.tar.gz
  • 准备agent
    • atlassian-agent-v1.2.3.tar.gz
  • 准备mysql Jar包
    • mysql-connector-java-5.1.49.tar.gz

2. 起数据库

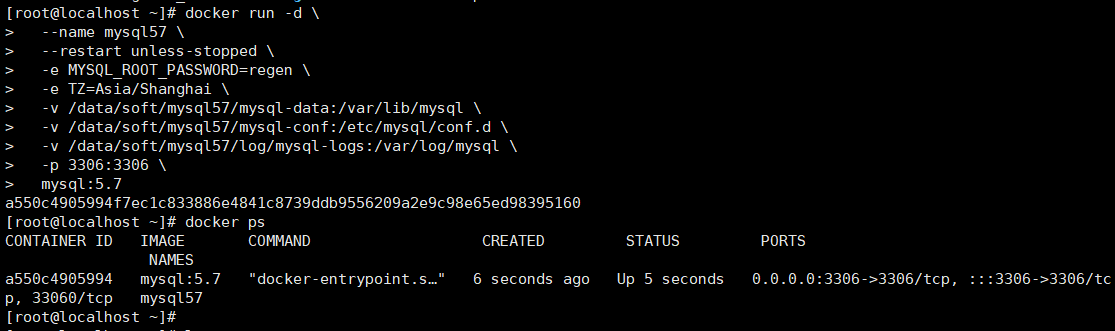

docker起数据库

1
2
3
4
5
6
7
8
9
10
docker run -d \
  --name mysql57 \
  --restart unless-stopped \
  -e MYSQL_ROOT_PASSWORD=regen \
  -e TZ=Asia/Shanghai \
  -v /data/soft/mysql57/mysql-data:/var/lib/mysql \
  -v /data/soft/mysql57/mysql-conf:/etc/mysql/conf.d \
  -v /data/soft/mysql57/log/mysql-logs:/var/log/mysql \
  -p 3306:3306 \
  mysql:5.7

image-20250718093831149

建库

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
-- 创建jira库
CREATE DATABASE jira CHARACTER SET utf8 COLLATE utf8_bin;
-- 创建confluence库
CREATE DATABASE confluence CHARACTER SET utf8 COLLATE utf8_bin;
-- 创建bitbucket库
CREATE DATABASE bitbucket CHARACTER SET utf8 COLLATE utf8_bin;
-- 创建crowd库
CREATE DATABASE crowd CHARACTER SET utf8 COLLATE utf8_bin;

-- 这里mysql和jira是在同一个服务器，所以使用了localhost，如果不在同一个服务器，可以使用 % 来代替localhost

CREATE USER 'jira'@'localhost' IDENTIFIED BY 'Regen123';
CREATE USER 'confluence'@'localhost' IDENTIFIED BY 'Regen123';
CREATE USER 'bitbucket'@'localhost' IDENTIFIED BY 'Regen123';
CREATE USER 'crowd'@'localhost' IDENTIFIED BY 'Regen123';

-- 给权限
GRANT ALL PRIVILEGES ON jira.* TO 'jira'@'localhost';

GRANT  ALL PRIVILEGES ON confluence.* TO 'confluence'@'localhost';

GRANT ALL PRIVILEGES ON bitbucket.* TO 'bitbucket'@'localhost';

GRANT ALL PRIVILEGES ON crowd.* TO 'crowd'@'localhost';

-- 刷新
FLUSH PRIVILEGES;

3. 安装jira 7.13

  • 到.bin文件目录下
1
2
chmod +x atlassian-jira-software-7.13.0-x64.bin # 赋予执行权限
./atlassian-jira-software-7.13.0-x64.bin        # 执行安装脚本
  • 默认安装之后
1
service jira stop
  • 添加 mysql-connector Jar包
1
2
3
tar -xvxf mysql-connector-java-5.1.49.tar.gz
cd mysql-connector-java-5.1.49
cp mysql-connector-java-5.1.49.jar  /opt/atlassian/jira/atlassian-jira/WEB-INF/lib
  • 进行pojie

qinyuxin99/atlassian-agent: jiraPJ工具

  1. 解压agent工具
1
tar xzvf atlassian-agent-v1.2.3.tar.gz
  1. 找到atlassian-agent.jar的路径/data/regen/jira/atlassian-agent-v1.2.3/atlassian-agent.jar
  2. 增加java启动项
1
2
3
vim /opt/atlassian/jira/bin/setenv.sh
# 增加以下行
export JAVA_OPTS="-javaagent:/data/regen/jira/atlassian-agent-v1.2.3/atlassian-agent.jar ${JAVA_OPTS}"
  1. 启动jira以后生成license

复制web平台（IP:8080）的序列号

在atlassian-agent.jar文件所在目录下执行：

1
java -jar atlassian-agent.jar -p jira -m aaa@bbb.com -n my_name -o https://zhile.io -s ABCD-1234-EFGH-5678

即可生成license，填入即可正常使用。

4.安装confluence 6.10.0

  • 到.bin文件目录下
1
2
chmod +x atlassian-confluence-6.10.0-x64.bin # 赋予执行权限
./atlassian-confluence-6.10.0-x64.bin        # 执行安装脚本
  • 默认安装之后
1
service confluence stop
  • 添加 mysql-connector Jar包
1
2
# 到mysql-connector Jar包下
cp mysql-connector-java-5.1.49.jar /opt/atlassian/confluence/confluence/WEB-INF/lib
  • 进行pojie

这里使用之前相同的agent jar包以及路径即可

  1. 增加java启动项
1
2
3
vim /opt/atlassian/confluence/bin/setenv.sh
# 增加以下行
export JAVA_OPTS="-javaagent:/data/regen/jira/atlassian-agent-v1.2.3/atlassian-agent.jar ${JAVA_OPTS}"
  1. 启动confluence以后生成license

复制web平台（IP:8090）的序列号

在atlassian-agent.jar文件所在目录下执行：

需要更换-p参数为conf

-p,–product License product, support:
[crowd: Crowd]
[questions: Questions plugin for Confluence]
[crucible: Crucible]
[capture: Capture plugin for JIRA]
[conf: Confluence]
[training: Training plugin for JIRA]
[*: Third party plugin key, looks like:
com.foo.bar]
[bitbucket: Bitbucket]
[tc: Team Calendars plugin for Confluence]
[bamboo: Bamboo]
[fisheye: FishEye]
[portfolio: Portfolio plugin for JIRA]
[jc: JIRA Core]
[jsd: JIRA Service Desk]
[jira: JIRA Software(common jira)]

1
java -jar atlassian-agent.jar -p conf -m aaa@bbb.com -n my_name -o https://zhile.io -s ABCD-1234-EFGH-5678

即可生成license，填入即可正常使用。

5.安装bitbucket 7.0.0

  • 到.bin文件目录下
1
2
chmod +x atlassian-bitbucket-7.0.0-x64.bin # 赋予执行权限
./atlassian-bitbucket-7.0.0-x64.bin        # 执行安装脚本
  • 默认安装之后
1
service bitbucket stop
  • 添加 mysql-connector Jar包
1
2
3
# 到mysql-c下onnector Jar包下
cp mysql-connector-java-5.1.49.jar /opt/atlassian/bitbucket/7.0.0/app/WEB-INF/lib/

  • 进行pojie

这里使用之前相同的agent jar包以及路径即可

  1. 增加java启动项
1
2
3
4
vim /opt/atlassian/bitbucket/7.0.0/bin/_start-webapp.sh

# 找到JAVA_OPTS，在其下面添加一行
export JAVA_OPTS="-javaagent:/data/regen/jira/atlassian-agent-v1.2.3/atlassian-agent.jar ${JAVA_OPTS}"
  1. 启动bitbucket以后生成license

复制web平台（IP:7990）的序列号

在atlassian-agent.jar文件所在目录下执行：

需要更换-p参数为bitbucket

-p,–product License product, support:
[crowd: Crowd]
[questions: Questions plugin for Confluence]
[crucible: Crucible]
[capture: Capture plugin for JIRA]
[conf: Confluence]
[training: Training plugin for JIRA]
[*: Third party plugin key, looks like:
com.foo.bar]
[bitbucket: Bitbucket]
[tc: Team Calendars plugin for Confluence]
[bamboo: Bamboo]
[fisheye: FishEye]
[portfolio: Portfolio plugin for JIRA]
[jc: JIRA Core]
[jsd: JIRA Service Desk]
[jira: JIRA Software(common jira)]

1
java -jar atlassian-agent.jar -p bitbucket -m aaa@bbb.com -n my_name -o https://zhile.io -s ABCD-1234-EFGH-5678

即可生成license，填入即可正常使用。

6.安装crowd 3.4.4

  • 解压安装包
1
2
tar -zxvf atlassian-crowd-3.4.4.tar.gz
mv atlassian-crowd-3.4.4.tar.gz
  • 添加 mysql-connector Jar包
1
2
# 到mysql-connector Jar包下
cp mysql-connector-java-5.1.49.jar /opt/crowd/atlassian-crowd-3.4.4/apache-tomcat/lib
  • 进行pojie

这里使用之前相同的agent jar包以及路径即可

  1. 增加java启动项
1
2
3
4
5
6
vim /opt/crowd/atlassian-crowd-3.4.4/apache-tomcat/bin/setenv.sh

# 找到CATALINA_OPTS，注释它，并在其下面添加一行

#CATALINA_OPTS="-javaagent:/opt/crowd/atlassian-agent.jar $CATALINA_OPTS"
export JAVA_OPTS="-javaagent:/data/regen/jira/atlassian-agent-v1.2.3/atlassian-agent.jar ${JAVA_OPTS}"
  1. 启动bitbucket以后生成license

复制web平台（IP:8095）的序列号

在atlassian-agent.jar文件所在目录下执行：

需要更换-p参数为crowd

-p,–product License product, support:
[crowd: Crowd]
[questions: Questions plugin for Confluence]
[crucible: Crucible]
[capture: Capture plugin for JIRA]
[conf: Confluence]
[training: Training plugin for JIRA]
[*: Third party plugin key, looks like:
com.foo.bar]
[bitbucket: Bitbucket]
[tc: Team Calendars plugin for Confluence]
[bamboo: Bamboo]
[fisheye: FishEye]
[portfolio: Portfolio plugin for JIRA]
[jc: JIRA Core]
[jsd: JIRA Service Desk]
[jira: JIRA Software(common jira)]

1
java -jar atlassian-agent.jar -p crowd -m aaa@bbb.com -n my_name -o https://zhile.io -s ABCD-1234-EFGH-5678

即可生成license，填入即可正常使用。
